Mi-T-M Gasoline Air/Gen/Welder Combinations

by Mi-T-M
Original price $10,485.00
Original price $10,485.00 - Original price $10,485.00
Original price $10,485.00
Current price $8,388.00
$8,388.00 - $8,388.00
Current price $8,388.00

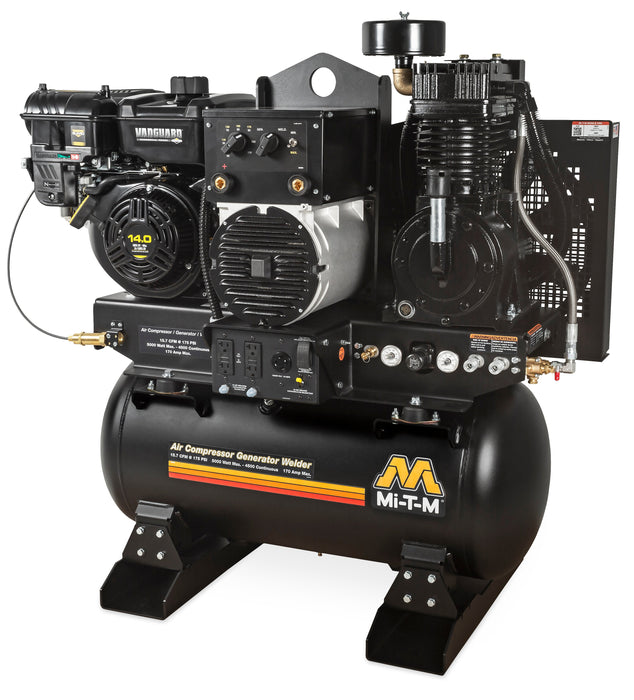

Two Stage Gasoline 30-Gallon - AGW-SV14-30M (Shown)

This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170A or 220A maximum

Frame: Powder coated ASME receiver tank · Powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel

AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle

Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Specifications

  • Displacement/ Engine: 408cc Vanguard OHV with electric start - battery and battery cables not included

  • Rated Speed: 3600 RPM

  • CFM @ 90 PSI 16.4

  • CFM @ 175 PSI* 15.7

  • Tank Size 30-gallon

  • Max. AC Output 5000 watts

  • Rated AC Output 4500 watts

  • Alternator Wattage: Cont. On-Load @ 90 PSI 3000 watts

  • Alternator Wattage: Cont. On-Load @ 175 PSI 2500 watts

  • Frequency/Voltage 60Hz/120V/240V

  • Max. Amps (120V/240V) 41.5/20.8 Off-Load

  • Cont. Amps (120V/240V) 37.5/18.8 Off-Load

  • Receptacles (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock

  • Duty Cycle (10 Min. Run Time) 150A @ 100%

  • DC Voltage 50-170A Working Range

  • Fuel Tank 1.53-gallon

Weights & Dimensions

  • Net Weight 605.00 lbs.

  • Shipping Weight 670.00 lbs.

  • Length 46.00 in.

  • Width 22.00 in.

  • Height 47.00 in.
