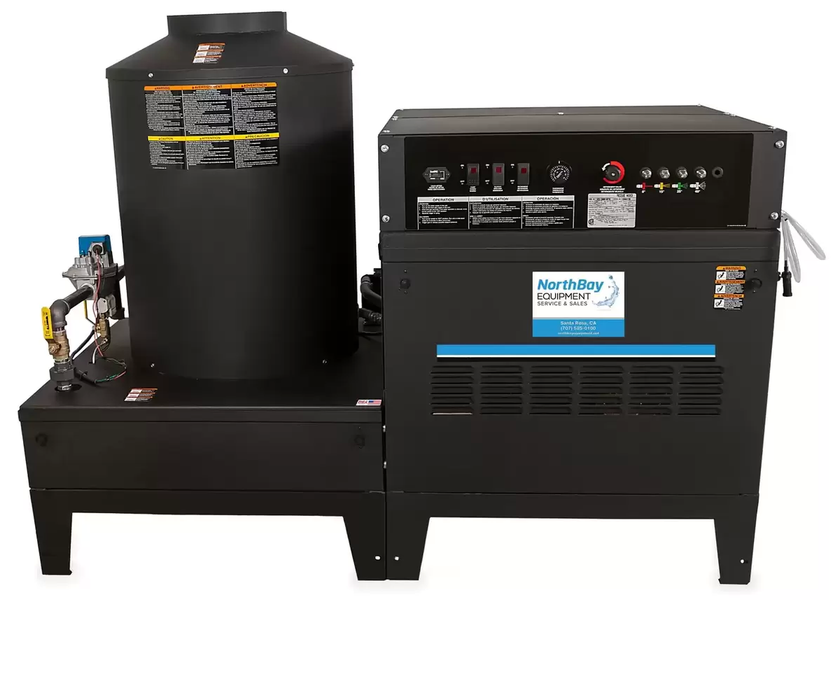

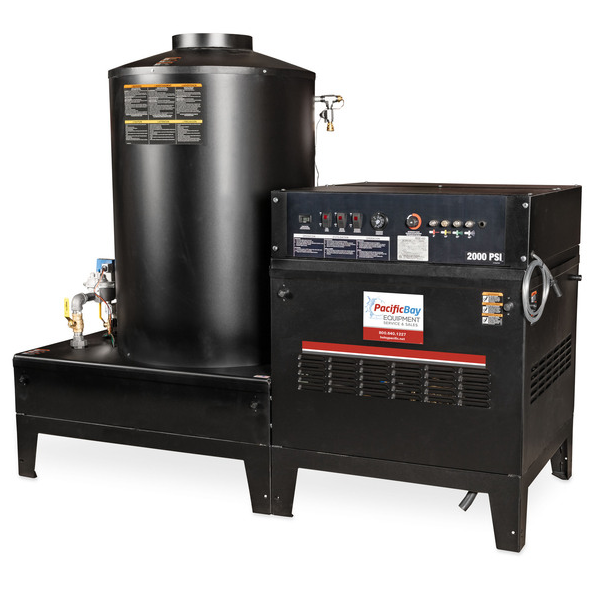

Mi-T-M Stationary Natural Gas/LP Belt Drive – HEG High Volume Wash Series

The HEG High Volume Series can handle jobs that require maximum cleaning power. This series has a unique coil design that keeps the unit temperature steady.

9.9 GPM @ 2000 PSI or 7.8 GPM @ 3000 PSI

Pump:
·Factory preset unloader

Motor:
·Open drip-proof electric motor with manual thermal overload protection

Frame:
·Powder coated steel frame with removable side panels

Components:
·1/2-inch schedule 80 pipe coil with 8-pancake heat exchanger
·Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 12-inch stack
·Electronic ignition with intermittent pilot
·Adjustable outlet thermostat for main temperature control
·Polyethylene float tank (8-gallon with in-line screen filter)
·Time delay shutdown
·Hour meter

Miscellaneous:
·Unique coil design allows thermostat to sense upstream water temperature to regulate outlet temperatures preventing large temperature swings
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes:
·Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:
·1 year electric motor

Certification:
·ETL Certified – US and Canada
