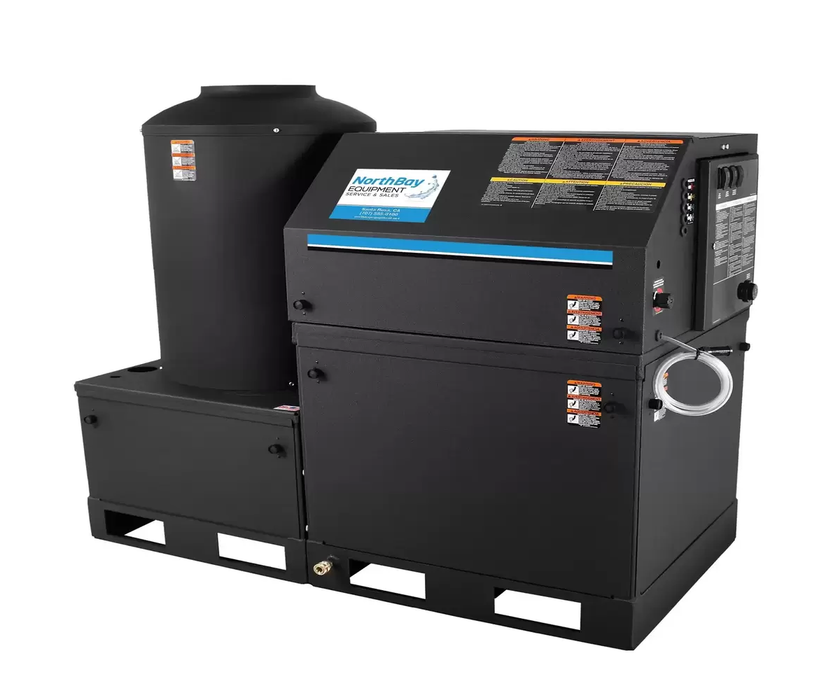

Mi-T-M Stationary Natural Gas/LP Belt Drive – HEG Series
Ranging from 1800 up to 3000 PSI, the HEG Series is capable of effortlessly cleaning caked on dirt and build-up off vehicles and equipment.
Up to 4.8 GPM @ 3000 PSI
Pump:
·Thermal relief valve
·Factory preset unloader
Motor:
·Open drip-proof electric motor with manual thermal overload protection
Frame:
·Powder coated steel frame with removable side panels
Components:
·1/2-inch schedule 80 pipe coil heat exchanger
·Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack
·10-inch draft diverter
·24V control system
·Electronic ignition with standing pilot light
·Adjustable thermostat
·Polyethylene float tank (4-gallon with in-line screen filter)
·Pressure switch and over-pressure safety controls
Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum 200°F (250°F/121°C outlet temperature with steam option)
Unit Includes:
·Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off
Limited Warranty:
·1 year electric motor
Certification:
·ETL Certified – US and Canada
