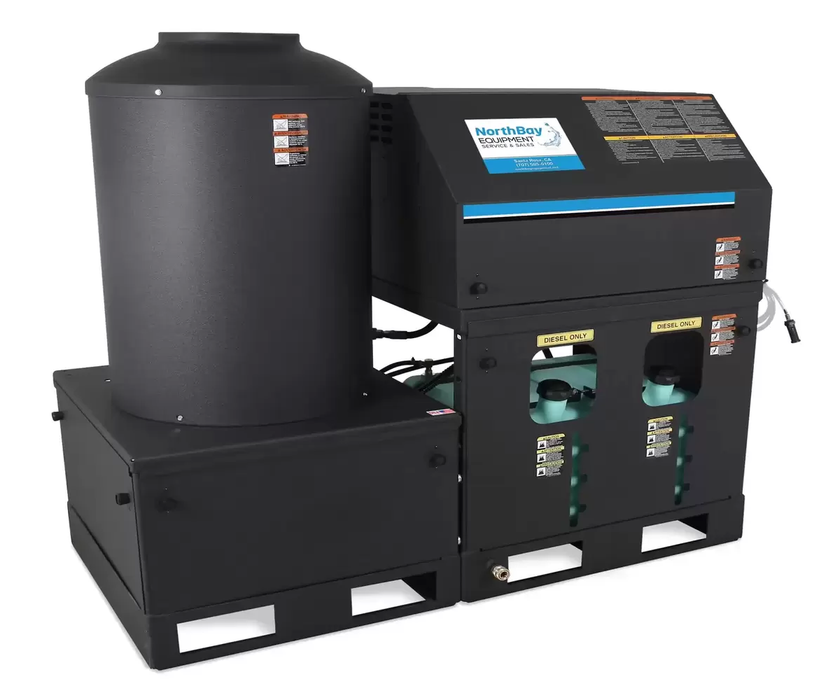

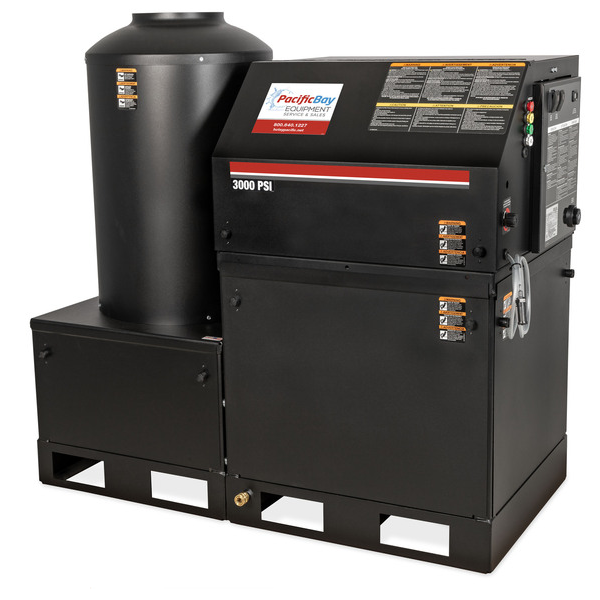

Mi-T-M Stationary Oil-Fired Belt Drive – HEO Series

by Mi-T-M

Add this stationary, HEO Series to your wash bay to effortlessly clean vehicles, machinery or equipment. This series features removable side panels for quick and easy maintenance.

Up to 4.8 GPM @ 3000 PSI

Pump:
·Thermal relief valve
·Adjustable high pressure detergent injector
·Factory preset unloader

Motor:
·Open drip-proof electric motor with manual thermal overload protection

Frame:
·Powder coated steel frame with removable side panels

Components:
·1/2-inch schedule 80 pipe coil with 5-pancake heat exchanger
·10-inch draft diverter
·On/Off burner, pump and motor switches
·Pressure switch and over-pressure safety controls
·24V control system
·Polyethylene float tank (4-gallon with in-line screen filter)
·Adjustable thermostat

Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)
·Designed to run on an existing fuel tank (Optional fuel tanks available)

Unit Includes:
·Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:
·1 year electric motor

Certification:
·ETL Certified – US and Canada

Product Sheet
