SWITCHES - THERMAL - HI-LIMIT - SNAP

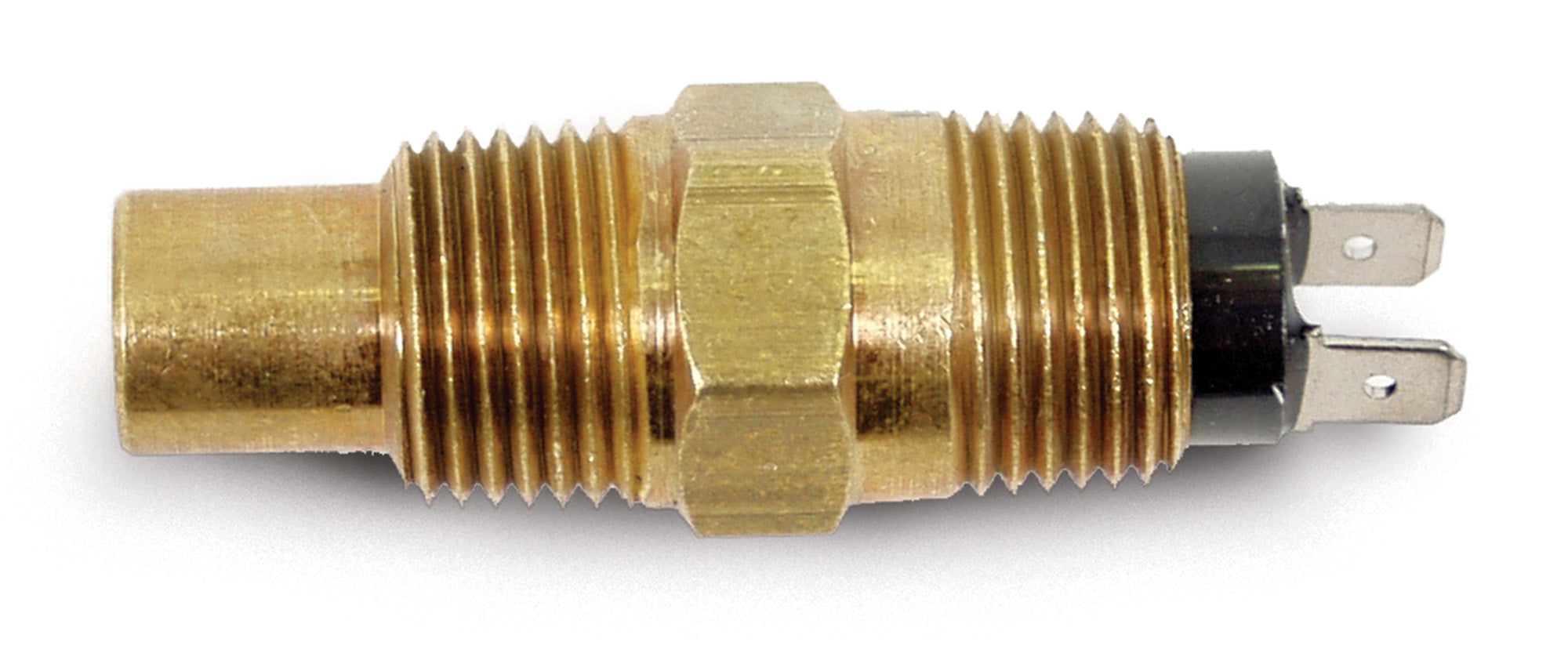

 Thermal - High Limit Switch

• PSI: 4000
• AMP: 15 at 110V, AMP: 10 at 220V
• 1/4" Male Spade Lug Terminals
• Normally Closed
• UL / CSA Rated, Bimetal Switch Components
• Heavy-Duty Brass Housing -
• 7000 PSI Collapse Rating
• Normally used with other adjustable or fixed range thermostat which regulates water temperature
• Does not turn back on until water has cooled 50° - 70°F
• Operates as a safety device to shut off burner to prevent machine (water) overheating flashing to steam
• Ranges by thread size and temp

If you need help finding the correct size, give us a call!
