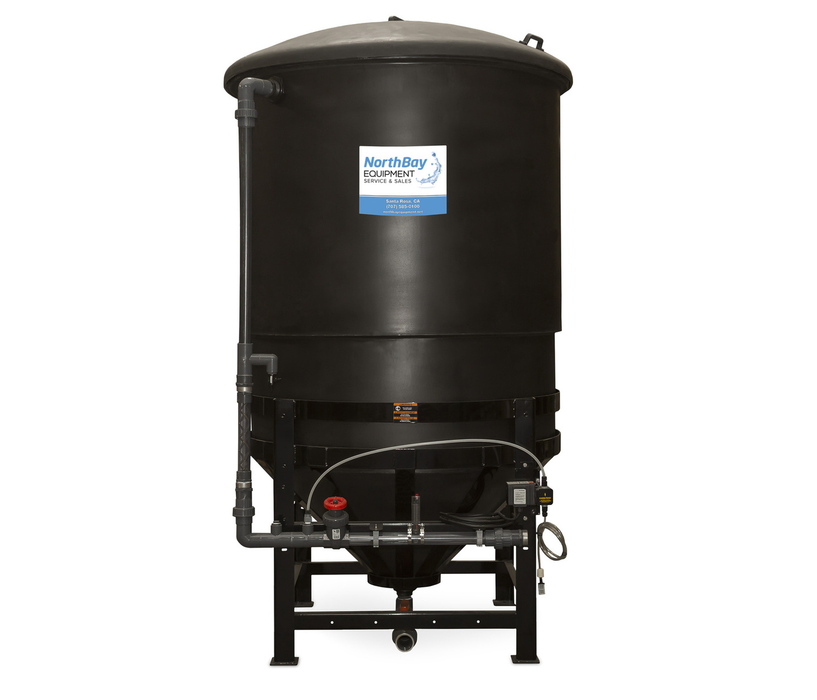

WTA Series
The WTA Series pretreatment systems can be added to any water treatment system for effective removal of solids prior to recycling. These set-ups offer the choice of 300-gallon or 600-gallon tanks.
Pretreatment Systems – 300-Gallons
WTA-300-0M10
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1
WTA-300CL-0M10 – Single Phase
WTA-300CL-0M30 – Three Phase
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1
3-0460 - Sump pump - qty. 1
WTA-300EXP-0M10 – Single Phase
WTA-300EXP-0M30 – Three Phase
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1
WTA-300SA-0M10 – Single Phase
WTA-300SA-0M30 – Three Phase
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0458 - Peristaltic pump - qty. 1
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1
Pretreatment Systems – 600-Gallons
WTA-600-0M11
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1
WTA-600CL-0M11 – Single Phase
WTA-600CL-0M31 – Three Phase
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1
3-0460 - Sump Pump - qty. 1
WTA-600EXP-0M11 – Single Phase
WTA-600EXP-0M31 – Three Phase
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1
WTA-600SA-0M11 – Single Phase
WTA-600SA-0M31 – Three Phase
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0458 - Peristaltic pump - qty. 1
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1
